HOWO RHD Vacuum Fecal Sewage Suction Sewer Tank Tanker Sludge Cleaning Truck
HOWO RHD Vacuum Fecal Sewage Suction Sewer Tank Tanker Sludge Cleaning Truck is a highly popular model of sanitation vehicle, especially in countries that use Right-Hand Drive (RHD) vehicles, such as those in Africa, Southeast Asia, and Oceania.

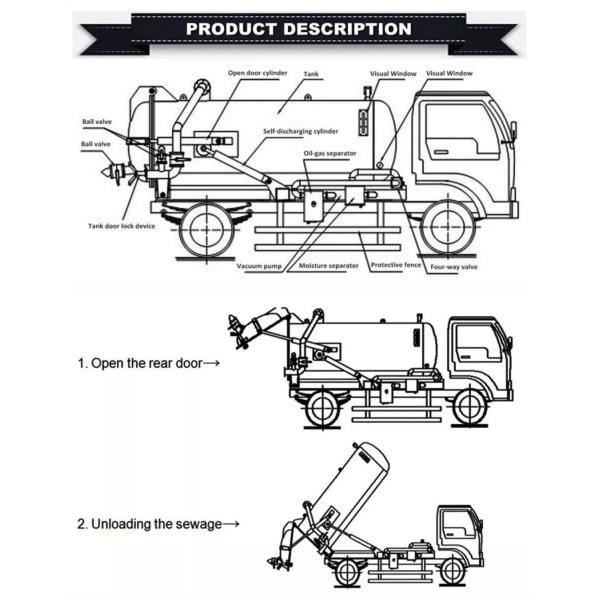

Function: It uses a high-powered vacuum pump to draw sewage, sludge, fecal matter, and wastewater from septic tanks, manholes, and sewers.
Chassis: Based on the SINOTRUK HOWO chassis, known for its robust and heavy-duty construction. The RHD (Right-Hand Drive) configuration makes it suitable for markets like Australia, New Zealand, Thailand, Pakistan, South Africa, and more.
Drive Type: Common configurations include 4x2 (for smaller tanks and city use) and 6x4 (for larger capacities and heavier duty).
Sewage Suction Truck (also called vacuum tanker truck, vacuum sewage truck, vacuum tanker truck, septic cleaner truck, sewage cleaning truck, vacuum truck manufacturer) is used to collect, transport, and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.
HOWO RHD Vacuum Fecal Sewage Suction Sewer Tank Tanker Sludge Cleaning Truck Technical sheet :
The technical specifications for a HOWO RHD (Right-Hand Drive) Vacuum Fecal Sewage Suction Sewer Tank Truck can vary significantly based on the specific chassis model, tank capacity, engine, and manufacturer options.
HOWO RHD Vacuum Fecal Sewage Suction Sewer Tank Tanker Sludge Cleaning Truck Specification
| Feature | Specification Range / Common Value | Notes |
| Chassis Brand | SINOTRUK HOWO |
| Driving Type | 6x4 or 4x2 | RHD (Right-Hand Drive) is specified. |
| Engine | SINOTRUK WD615 series (or equivalent) | Common horsepower range: 266 HP to 371 HP. |
| Emission Standard | Euro II / Euro III (Varies by market) |
|
| Gearbox | Manual Transmission (e.g., HW19710) | Typically 10 forwards and 2 reverse gears. |
| Tank Capacity | 10,000L to 15,000L (10-15 CBM) | Smaller and larger capacities are available. |
| Tank Material | High-Quality Carbon Steel (e.g., Q235, 6mm thickness) | Thickness of the tank body and end plates varies. |
| Tank Features | Hydraulic rear dumping, hydraulic open rear door. | Includes a level view window, anti-overflow valve. |
| Vacuum Pump | Chinese famous brand or International brand (e.g., Italian Jurop) | High-efficiency vacuum pump. |
| Max Suction Depth | ≥7 to 8 meters |
| Full Suction Time | Typically ≤5 to 15 minutes (depending on capacity/pump) |
| Suction Hose | ≥8 meters length, DN100 or DN150 diameter | With quick connectors. |
| Discharge | Gravity discharge and pressure discharge (by vacuum pump) | Includes a large diameter discharge valve (e.g., DN150mm). |
| Max. Driving Speed | ≈90 km/h |
| Tires | 12.00R20 or 12R22.5 (Radial tires) |
| Overall Dimensions | Varies significantly, e.g., 9700×2500×3290 mm (for a 6x4 model) | Length x Width x Height. |
HOWO RHD Vacuum Fecal Sewage Suction Sewer Tank Tanker Sludge Cleaning Truck Application :
- Septic Tank Pumping: Emptying and cleaning residential and commercial septic tanks and cesspools.
- Sewer and Pipeline Maintenance: Clearing sediment, mud, sludge, stones, bricks, and other blockages from municipal sewers, drainpipes, and inspection wells to ensure smooth drainage and prevent flooding.
- Drainage Systems: Cleaning and maintaining stormwater drains, gullies, and mud ditches.
- Sewage Collection and Transport: Collecting liquid waste and sewage from various storage facilities and safely transporting it to sewage treatment plants for processing.
- Waste Transfer: Acting as a transfer vehicle for collected sewage and sludge.
Application:
These powerful and efficient vacuum tank truck are designed to vacuum up and recover a wide range of different materials, from liquids, solids, thick sludge , all while leaving the surface below safe and clean.
Vacuum tanker is a tank truck that has a pump and a tank. The pump is designed to pneumatically suck liquids, sludges, slurries, or the like from a location (often underground) into the tank of the truck. The objective is to enable transport of the liquid material via road to another location. Vacuum trucks transport
